behrotest ® column elution unit for the elution of soil samples

Výrobca: Behr Labor-Technik GmbH

Column elution unit:

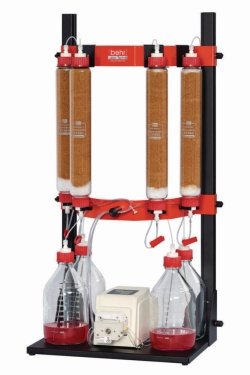

Column elution unit in acc. with the LUA recommendation with 4-channel hose pump with controllable speed. The unit consists of :

  • Assembly stand for the system
  • Controllable 4-channel hose pump with fixed speed
  • Storage vessel, 20 l
  • 4 elution columns, internal diameter 6 cm, 32 cm long, with 2 screwed joints (GL 45, with PTFE inserts) for simple filling of the columns
  • 4 collection bottles for the column eluate, 2 l, with screwed joint (GL 45) and deaeration
  • Supply tube made of TYGON and PVC, with non-return valve in the supply to the column
  • PTFE tubes between columns and collection vessels
  • Flow rate 0.003 to 35 ml/min
  • Range of speed 2 to 100 min-1
  • Simultaneous control of all 4 channels

behrotest® silica sand:
for column elution unit, grain size 1 to 2 mm in acc. with DIN V 19736, 1000 g bottle

behrotest® silica wool:
for column elution unit, 100 g bag

Obj. číslo 9.843 741 9.843 925 7.609 951 9.843 745 9.843 744
Article Packing Unit 1 1 1 1 1
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00
  Obj. číslo Názov Kusov v balení Dostupnosť
9.843 741 behrotest ® column elution unit for the elution of soil samples | Type : SEB 32 R 1 x 1 Na vyžiadanie
9.843 925 behrotest ® column elution unit for the elution of soil samples | Type : GS 950 1 x 1 Na vyžiadanie
7.609 951 behrotest ® column elution unit for the elution of soil samples | Type : GS 450 1 x 1 Na vyžiadanie
9.843 745 behrotest ® column elution unit for the elution of soil samples | Type : QW-SEB 1 x 1 Na vyžiadanie
9.843 744 behrotest ® column elution unit for the elution of soil samples | Type : QS-SEB 1 x 1 Na vyžiadanie
