Wavelength Range: 200nm - 2500nm
Optical material: Quartz glass High Performance
| Obj. číslo | 9.144 771 | 6.222 630 | 9.144 761 | 7.606 579 | 9.144 391 | 7.200 073 | 9.144 801 | 9.144 781 | 9.144 791 | 9.144 390 | 6.081 483 | 6.302 645 | 6.204 497 | 6.051 579 | 6.080 492 | 6.801 662 | 6.075 980 | 6.080 511 | 6.510 380 | 9.144 811 | 9.144 759 | 6.250 225 | 6.055 271 | 7.638 526 | 6.093 874 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Centre height mm | 8.5 | 15.0 | 8.5 | 20.0 | 15.0 | 20.0 | 8.5 | 15.0 | 20.0 | ||||||||||||||||
| External dimensions (W x D x H) mm | 12.5 x 12.5 x 46 | 12.5 x 12.5 x 56 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 7.5 x 7.5 x 46 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 46 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 40 | 12.5 x 12.5 x 49.5 | 12.5 x 12.5 x 45 | 7,5 x 7,5 x 45 | 12.5 x 12.5 x 40 | 7.5 x 7.5 x 45 | 12.5 x 12.5 x 49.5 | 12.5 x 12.5 x 45 | 5.4 x 5.4 x 21 | 12.5 x 12.5 x 40 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 56 | 12.5 x 22.5 x 45 | 12.5 x 12.5 x 45 |
| Path length mm | 10 x 10 | 10 x 4 | 10 x 10 | 1.5 x 1.5 | 3 x 3 | 5 x 5 | 10 x 2 | 10 x 4 | 10 x 4 | 3 x 3 | 10 x 2 | 10 x 10 | 10 x 10 | 10 x 2 | 10 x 4 | 10 x 10 Tol. ± 0.2 | 5 x 5 | 10 x 4 | 10 x 2 | 3 x 3 | 10 x 2 | 1.5 x 1.5 | 10 x 10 | 10 x 20 | 10 x 4 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| internal width (mm) / aperture (mm x mm/Ø) | 10 | 4 | 10 | 5 x 1.5 | 5 x 3 | 5 | 2 | 4 | 4 | 5 x 3 | 2 | 10 | 10 | 5 x 2 | 4 | 10 | 5 | 4 | 5 x 2 | 3 | 2 | 5 x 1.5 | 10 | 10 | 4 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|

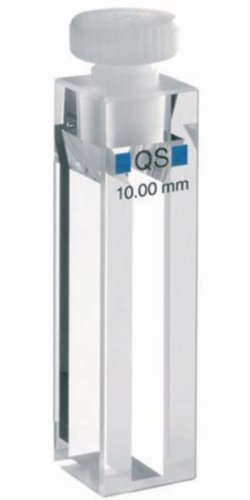

9.144 771 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | skladom | ||
|
6.222 630 | Cells for Fluorescence Measurement, UV-range | Type : semi-micro | 1 x 1 | Na vyžiadanie | ||
|
9.144 761 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Skladom do 6 dní | ||
|
7.606 579 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
|
9.144 391 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
|
7.200 073 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
9.144 801 | Cells for Fluorescence Measurement, UV-range | Type : micro | 1 x 1 | Na vyžiadanie | ||
|
9.144 781 | Cells for Fluorescence Measurement, UV-range | Type : semi-micro | 1 x 1 | Na vyžiadanie | ||
|
9.144 791 | Cells for Fluorescence Measurement, UV-range | Type : semi-micro | 1 x 1 | Na vyžiadanie | ||
|
9.144 390 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
|
6.081 483 | Cells for Fluorescence Measurement, UV-range | Type : micro | 1 x 1 | Na vyžiadanie | ||
|
6.302 645 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Na vyžiadanie | ||
|
6.204 497 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Na vyžiadanie | ||
|
|
6.051 579 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
| 6.080 492 | Cells for Fluorescence Measurement, UV-range | Type : semi-micro | 1 x 1 | Na vyžiadanie | |||
|
|
6.801 662 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Na vyžiadanie | ||
|
|
6.075 980 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Na vyžiadanie | ||
|
|
6.080 511 | Cells for Fluorescence Measurement, UV-range | Type : semi-micro | 1 x 1 | Na vyžiadanie | ||
|
|
6.510 380 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
|
9.144 811 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
|
9.144 759 | Cells for Fluorescence Measurement, UV-range | Type : micro | 1 x 1 | Na vyžiadanie | ||
|
|
6.250 225 | Cells for Fluorescence Measurement, UV-range | Type : ultramicro | 1 x 1 | Na vyžiadanie | ||
|
|
6.055 271 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Na vyžiadanie | ||
|
|
7.638 526 | Cells for Fluorescence Measurement, UV-range | Type : macro | 1 x 1 | Na vyžiadanie | ||
|
|
6.093 874 | Cells for Fluorescence Measurement, UV-range | Type : semi-micro | 1 x 1 | Na vyžiadanie |
