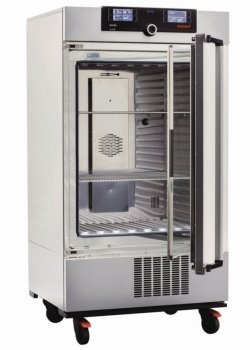

Climate Chambers ICH

Výrobca: Memmert GmbH + Co. KG

The climate chamber generation with the unique ControlCOCKPIT for a quick and intuitive operation. Unparalleled temperature and humidity homogeneity for long-term stable ambient conditions. Specially designed for testing pharmaceutical products according to ICH, Q1A and Q1B, option 2, and similar global standards for stability tests of cosmetics and food.
Standard equipment :

  • PID microprocessor control with integrated auto-diagnostic system
  • Interior stainless steel 1.4301 (ASTM 304), deep-drawn
  • Structured stainless steel housing, rear of zinc-plated steel
  • High-Operation and adjustment of all parameters directly at the ControlCOCKPIT temperature connectors on the rear of the appliance for single-phase power connection according to country specific systems and IEC standards
  • Internal data logger with a storage capacity of at least 10 years
  • German, English, French, Spanish language settings available on the ControlCOCKPIT
  • Digital backwards counter with target time setting adjustable between 1 minute and 99 days
  • The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points - optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber
  • Adjustment of three calibration values for temperature and additional appliance specific parameters directly at the ControlCOCKPIT, for example relative humidity
  • Moisture tight standard entry port, at the back, 40 mm inner diameter, can be closed by silicone stopper

TwinDISPLAY: ControlCOCKPIT with two TFT colour displays
  • Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), programme time, relative humidity, time zones, summertime/wintertime
  • Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error
  • AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
  • ControlCOCKPIT with USB port for uploading programmes, reading out protocol logs, activating the User-ID function
  • Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)
  • Ethernet interface on the rear of the appliance for reading out the protocol log and for uploading programmes and for online logging
  • Multiple overtemperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.3 or 2 and mechanical temperature limiter TB (protection class 1) acc. to DIN 12880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual MIN / MAX values for over/undertemperature alarm
Climate chamber variants:
ICH climate chamber
ICH L climate chamber with light
ICH C climate chamber with CO2 control

Obj. číslo 9.538 018 9.538 020 9.538 019 6.261 037 6.261 059 6.261 039 6.261 036 6.261 060 6.261 038
Article Packing Unit 1 1 1 1 1 1 1 1 1
Capacity l 108 749 256 108 749 256 108 749 256
Housing (W x D x H) mm 745 x 634** x 1233 1224 x 834** x 1950 824 x 734** x 1552 745 x 634** x 1233 1224 x 834** x 1950 824 x 734** x 1552 745 x 634** x 1233 1224 x 834** x 1950 824 x 734** x 1552
Internal dimensions (W x D x H) mm 560 x 400* x 480 1040 x 600* x 1200 640 x 500* x 800 560 x 400* x 480 1040 x 600* x 1200 640 x 500* x 800 560 x 400* x 480 1040 x 600* x 1200 640 x 500* x 800
Rating W 1350 1350 1350 1350 1530 1350 1450 1350 1450
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Shelf support ribs/shelves 2/5 2/14 2/9 2/5 2/14 2/9 2/5 2/14 2/9
Weight kg 109 249 160 109 249 160 109 249 160
  Obj. číslo Názov Kusov v balení Dostupnosť
9.538 018 Climate Chambers ICH | Type : ICH110 1 x 1 Na vyžiadanie
9.538 020 Climate Chambers ICH | Type : ICH750 1 x 1 Na vyžiadanie
9.538 019 Climate Chambers ICH | Type : ICH260 1 x 1 Na vyžiadanie
6.261 037 Climate Chambers ICH | Type : ICH110C 1 x 1 Na vyžiadanie
6.261 059 Climate Chambers ICH | Type : ICH750L 1 x 1 Na vyžiadanie
6.261 039 Climate Chambers ICH | Type : ICH260C 1 x 1 Na vyžiadanie
6.261 036 Climate Chambers ICH | Type : ICH110L 1 x 1 Na vyžiadanie
6.261 060 Climate Chambers ICH | Type : ICH750C 1 x 1 Na vyžiadanie
6.261 038 Climate Chambers ICH | Type : ICH260L 1 x 1 Na vyžiadanie
