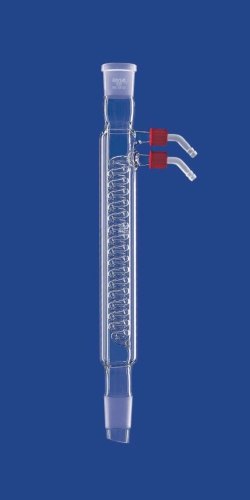

Made of DURAN® tubing. Acc. to DIN 12593 and in addition to DIN standard. With jacketed cooling coil. Water connection with glass olives or GL 14 thread with two threaded plastic olives.
| Obj. číslo | 9.012 542 | 6.240 342 | 6.304 794 | 6.900 522 | 6.203 405 | 6.227 832 | 7.970 241 | 9.012 543 | 6.203 018 | 7.635 816 | 9.012 544 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Cone NS | 29/32 | 29/32 | 14/23 | 14/23 | 19/26 | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Connection | GL14 | olives | olives | GL14 | GL14 | olives | olives | GL14 | GL14 | olives | GL14 |
| Cooling surface cm² | 240 | 650 | 240 | 240 | 240 | 400 | 840 | 400 | 840 | 240 | 650 |
| DIN | 12593 | 12593 | 12593 | 12593 | 12593 | 12593 | |||||
| Effective length mm | 160 | 400 | 160 | 160 | 160 | 250 | 500 | 250 | 500 | 160 | 400 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Socket NS | 29/32 | 29/32 | 14/23 | 14/23 | 19/26 | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
9.012 542 | Coil condensers, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
6.240 342 | Coil condensers, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie | ||
|
6.304 794 | Coil condensers, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
6.900 522 | Coil condensers, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
6.203 405 | Coil condensers, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
6.227 832 | Coil condensers, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
7.970 241 | Coil condensers, DURAN® tubing | Effective length mm : 500 | 1 x 1 | Na vyžiadanie | ||
|
9.012 543 | Coil condensers, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
|
6.203 018 | Coil condensers, DURAN® tubing | Effective length mm : 500 | 1 x 1 | Na vyžiadanie | ||
|
|
7.635 816 | Coil condensers, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
9.012 544 | Coil condensers, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie |
