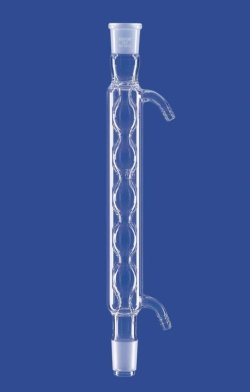

Allihn condensers acc. to DIN 12581 and in addition to DIN, for condensing vapours, with NS socket and NS cone, water connection with glass olives, made of DURAN® tubing
| Obj. číslo | 6.225 025 | 6.203 391 | 7.930 053 | 7.631 268 | 6.251 057 | 6.256 242 | 6.254 134 | 6.205 249 | 7.930 054 | 6.224 091 | 7.019 316 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Cone NS | 24/29 | 29/32 | 19/26 | 29/32 | 24/29 | 14/23 | 14/23 | 29/32 | 19/26 | 24/29 | 29/32 |
| Cooling surface cm² | 200 | 100 | 100 | 400 | 100 | 100 | 200 | 200 | 200 | 300 | 300 |
| DIN | 12581 | 12581 | |||||||||
| Effective length mm | 250 | 160 | 160 | 500 | 160 | 160 | 250 | 250 | 250 | 400 | 400 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Socket NS | 24/29 | 29/32 | 19/26 | 29/32 | 24/29 | 14/23 | 14/23 | 29/32 | 19/26 | 24/29 | 29/32 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
6.225 025 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
6.203 391 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
7.930 053 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
7.631 268 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 500 | 1 x 1 | Na vyžiadanie | ||
|
|
6.251 057 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
6.256 242 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
6.254 134 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
|
6.205 249 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
|
7.930 054 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
6.224 091 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie | ||
|
|
7.019 316 | Condensers acc. to Allihn, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie |
