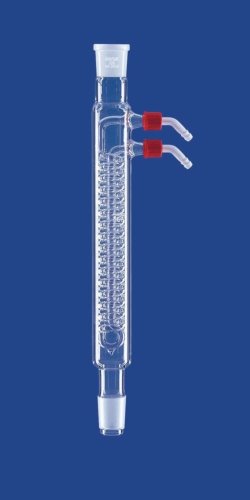

Made of DURAN® tubing. Acc. to DIN 12591 and in addition to DIN standard. With NS cone and socket. Water connection GL14 threads with two threaded plastic olives.
| Obj. číslo | 6.202 460 | 9.012 533 | 9.012 530 | 6.225 378 | 9.012 534 |
|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 |
| Cone NS | 14/23 | 29/32 | 14/23 | 45/40 | 29/32 |
| Cooling surface cm² | 240 | 440 | 140 | 440 | 740 |
| DIN | 12591 | 12591 | |||
| Effective length mm | 250 | 250 | 160 | 250 | 400 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Socket NS | 14/23 | 29/32 | 14/23 | 45/40 | 29/32 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
6.202 460 | Condensers acc. to Dimroth, with GL threads, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
|
9.012 533 | Condensers acc. to Dimroth, with GL threads, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Skladom do 26 dní | ||
|
9.012 530 | Condensers acc. to Dimroth, with GL threads, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
6.225 378 | Condensers acc. to Dimroth, with GL threads, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
9.012 534 | Condensers acc. to Dimroth, with GL threads, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie |
