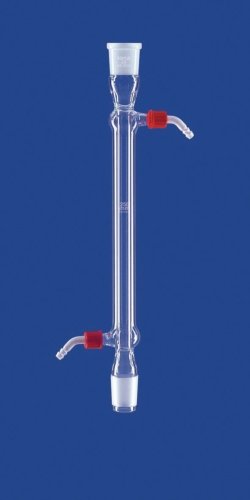

Condensers acc. to Liebig, DURAN® tubing

Condensers acc. to Liebig, DURAN® tubing

Výrobca: Lenz-Laborglas GmbH & Co. KG

Made of DURAN® tubing. DIN 12576 and in addition to DIN standard. With NS cone and socket. Water connection: glass olives or GL14 threads with two threaded plastic olives.

Obj. číslo 9.012 502 9.012 505 6.204 007 6.901 719 9.012 503 9.012 506 9.012 501 6.203 027 6.203 028 7.019 306 6.203 025
Article Packing Unit 1 1 1 1 1 1 1 1 1 1 1
Cone NS 14/23 29/32 19/26 19/26 14/23* 29/32 19/26 14/23* 14/23 24/29* 29/32
Connection GL GL olive olive GL GL GL olive olive olive olive
Cooling surface cm² 60 130 130 90 100 210 90 100 60 130 130
Effective length mm 160 250 250 160 250 400 160 250 160 250 250
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Socket NS 14/23 29/32 19/26 19/26 14/23 29/32 19/26 14/23 14/23 24/29 29/32
  Obj. číslo Názov Kusov v balení Dostupnosť
9.012 502 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 160 1 x 1 Na vyžiadanie
9.012 505 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 250 1 x 1 skladom
6.204 007 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 250 1 x 1 Na vyžiadanie
6.901 719 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 160 1 x 1 Na vyžiadanie
9.012 503 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 250 1 x 1 Na vyžiadanie
9.012 506 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 400 1 x 1 Skladom do 19 dní
9.012 501 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 160 1 x 1 Na vyžiadanie
6.203 027 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 250 1 x 1 Na vyžiadanie
6.203 028 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 160 1 x 1 Na vyžiadanie
7.019 306 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 250 1 x 1 Na vyžiadanie
6.203 025 Condensers acc. to Liebig, DURAN® tubing | Effective length mm : 250 1 x 1 Na vyžiadanie
