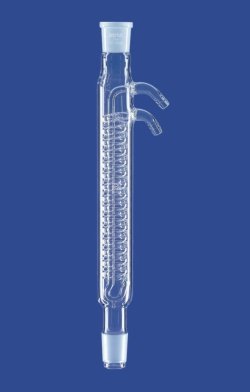

Made of DURAN® tubing. Dimroth condensers acc. to DIN 12591 and in addition to DIN standard, for condensing vapours, with NS socket and cone, water connection: glass olives or GL 14 threads with two threaded plastic olives.
| Obj. číslo | 6.071 792 | 6.230 126 | 6.222 534 | 6.236 577 | 6.204 362 | 6.225 990 |
|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 |
| Cone NS | 14/23 | 19/26 | 14/23 | 29/32 | 45/40 | 29/32 |
| Cooling surface cm² | 240 | 440 | 140 | 440 | 1380 | 740 |
| DIN | 12591 | 12591 | ||||
| Effective length mm | 250 | 250 | 160 | 250 | 400 | 400 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Socket NS | 14/23 | 19/26 | 14/23 | 29/32 | 45/40 | 29/32 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
6.071 792 | Dimroth condensers, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
|
6.230 126 | Dimroth condensers, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
6.222 534 | Dimroth condensers, DURAN® tubing | Effective length mm : 160 | 1 x 1 | Na vyžiadanie | ||
|
|
6.236 577 | Dimroth condensers, DURAN® tubing | Effective length mm : 250 | 1 x 1 | Na vyžiadanie | ||
|
6.204 362 | Dimroth condensers, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie | ||
|
|
6.225 990 | Dimroth condensers, DURAN® tubing | Effective length mm : 400 | 1 x 1 | Na vyžiadanie |
