Drum pumps, mains-powered

Výrobca: Lutz Pumpen GmbH

Lightweight and powerful pump for transferring small amounts of aqueous liquids up to 300 mPas from cans and drums with infinitely variable speed controller.

  • Motor 230 V, 200 W (IP 24)
  • Seal less pump tube
  • Suitable accessory flow meter required
  • Pump with tubing connection

Two options:
  • Polypropylene version for acids and alkalis
  • Stainless steel version for low-viscosity lubricants

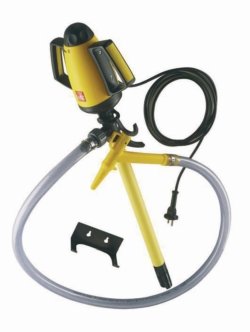

Available as a set (9.880 310-9.880 315) with 1.5 m PVC tubing, nozzle in polypropylene, wall bracket.
Set accessories: Lutz nozzle, 1.5 m PVC hose 3/4", hose connection, hose clamps, wall bracket (for pump B2 Vario PP-SL Ø 32 mm).

Obj. číslo 9.880 315 6.283 249 9.880 303 9.880 313 9.880 314 9.880 305 9.880 311 7.930 292 9.880 300 9.880 301 9.880 302 9.880 310 9.880 312 9.880 304
Article Packing Unit 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Delivery head mWS 6.5 7.0 6.5 6.5 6.5 6.5 7.0 7.0 7.0 7.0 7.0 7.0 6.5
Flow rate l / min. 68 75 68 68 68 68 75 75 75 75 75 75 68
Immersion depth mm 1000 700 500 500 700 1000 700 500 700 1000 500 1000 700
Immersion tube diam. mm 28 32 28 28 28 28 32 32 32 32 32 32 28
Material stainless steel PVDF stainless steel stainless steel stainless steel stainless steel PP PVC PP PP PP PP PP stainless steel
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
  Obj. číslo Názov Kusov v balení Dostupnosť
9.880 315 Drum pumps, mains-powered | Type : Pump set 1 x 1 Na vyžiadanie
6.283 249 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
9.880 303 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
9.880 313 Drum pumps, mains-powered | Type : Pump set 1 x 1 Na vyžiadanie
9.880 314 Drum pumps, mains-powered | Type : Pump set 1 x 1 Na vyžiadanie
9.880 305 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
9.880 311 Drum pumps, mains-powered | Type : Pump set 1 x 1 Na vyžiadanie
7.930 292 Drum pumps, mains-powered | Type : Set accessories 1 x 1 Na vyžiadanie
9.880 300 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
9.880 301 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
9.880 302 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
9.880 310 Drum pumps, mains-powered | Type : Pump set 1 x 1 Na vyžiadanie
9.880 312 Drum pumps, mains-powered | Type : Pump set 1 x 1 Na vyžiadanie
9.880 304 Drum pumps, mains-powered | Type : Pump 1 x 1 Na vyžiadanie
