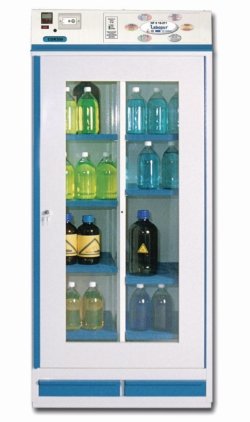

Filtration safety cabinets LABOPUR® 12X series

Výrobca: ECOSAFE SA

Safe storage in laboratories and working premices without duct-infrastructure

  • No ductwork required, no connection to extraction systems needed, very easy to set-up
  • High filter efficiency due to specially engineered active coal technology
  • Tested and approved according to Norm NFX 15-211
  • Protects laboratory users and environment from toxic fumes. Reduces total carbon footprints
  • Low energy consumption: less than 500KWh per year, approx. filter life: 10 to 12 months
  • Vertical compartment architecture allows segregated and secure storage

Storage capacity / Number of perforated shelves and retention tanks
  • AF2C: 140L (140 x 1L or 60 x 2.5L bottles) / 4 x shelves, 1 x tank
  • AF22C: 120L (120 x 1L or 56 x 2.5L bottles) / 8 x ½-shelves, 2 x ½- tanks
  • AF42C: 280L (280 x 1L or 120 x 2.5L bottles) / 8 x shelves, 2 x tanks
  • AF44C: 240L (240 x 1L or 112 x 2.5L bottles) / 16 x ½-shelves, 4 x ½ tanks

Equipped with:
  • Built in 15/10steel, covered with white Epoxy (RAL 9010) with blue stripes
  • Large glazed door(s) with framing; double air inlet at the bottom

Ventilation / filtration system and charcoal filters
  • According to Norm NFX 15-211
  • Noiseless fan: 49 dB(A), 220-240V, 50Hz, 47W, 0.2A
  • Airflow: 203 m3/h, ventilation system with lighting control

Charcoal filters - please order separately.

Obj. číslo 4.007 799 4.007 796 4.007 798 4.007 795
Article Packing Unit 1 1 1 1
External dimensions (W x D x H) mm 1600 x 545 x 1950 800 x 545 x 1900 1600 x 545 x 1950 800 x 545 x 1900
Internal dimensions (W x D x H) mm (4x) 380 x 500 x 1660 780 x 500 x 1660 (2x) 780 x 500 x 1660 (2x) 380 x 500 x 1660
Sales Packing Unit 1.00 1.00 1.00 1.00
Weight kg 300 140 280 150
  Obj. číslo Názov Kusov v balení Dostupnosť
4.007 799 Filtration safety cabinets LABOPUR® 12X series | Type : AF44C 1 x 1 Na vyžiadanie
4.007 796 Filtration safety cabinets LABOPUR® 12X series | Type : AF2C 1 x 1 Na vyžiadanie
4.007 798 Filtration safety cabinets LABOPUR® 12X series | Type : AF42C 1 x 1 Na vyžiadanie
4.007 795 Filtration safety cabinets LABOPUR® 12X series | Type : AF22C 1 x 1 Na vyžiadanie
