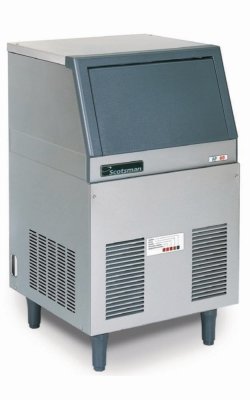

Flake ice makers with / without reservoir, air-cooled

Flake ice makers with / without reservoir, air-cooled

Výrobca: HIBU Eismaschinen

Manufactured according to DIN ISO 9001. For preparing solid and saturated ice flakes of hygienic, 0.5°C cold ice. With eletronic control of the ice temperature. The units have a stainless steel housing and an antimicrobial coated interior. Air-cooled versions, with cleaning indication.

  • MF models without reservoir (please order separately).

  • AF models without drain pump. Equipped with a UV lamp to reduce the infestation of bacteria and viruses in the machine and in the water circuit.

  • EF models standard with drain pump. The drain pump allows an installation or set-up without any drainage height or distance problems. Place your ice maker just where it is needed even lower than the actual drain outlet (can be up to 1.70m higher). Distance to drain outlet up to 15 meters. Drain can be placed up to 1.70 higher.

  • 2 year warranty.

Scope of supply: Flake ice maker, 1 x scoop

Also available with water-cooled compressor. Alternative models availlable on request. A specially built model for laboratory-grade water is available on request.

Obj. číslo 9.580 043 9.580 046 9.580 041 9.580 048 9.580 047 9.580 006 9.580 045 9.580 042 6.222 851 9.580 040
Article Packing Unit 1 1 1 1 1 1 1 1 1
Capacity kg 60 40 40 60 60 25 30 60 30
Depth mm 605 605 605 605 605 620 622 605 622
Height mm 1083 872 872 1083 1083 890 1078 1083 1078
Output kg/24 hrs. up to kg 200 122 122 200 160 73 120 160 120
Power W 950 510 510 950 590 340 550 590 550
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Width mm 950 950 950 950 950 535 592 950 592
  Obj. číslo Názov Kusov v balení Dostupnosť
9.580 043 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker AF 206 XSafe 1 x 1 Na vyžiadanie
9.580 046 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker EF 124 1 x 1 Na vyžiadanie
9.580 041 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker AF 124 XSafe 1 x 1 Na vyžiadanie
9.580 048 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker EF 206 1 x 1 Na vyžiadanie
9.580 047 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker EF 156 1 x 1 Na vyžiadanie
9.580 006 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker AF 80 XSafe 1 x 1 Na vyžiadanie
9.580 045 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker EF 103 1 x 1 Na vyžiadanie
9.580 042 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker AF156 XSafe 1 x 1 Na vyžiadanie
6.222 851 Flake ice makers with / without reservoir, air-cooled Na vyžiadanie
9.580 040 Flake ice makers with / without reservoir, air-cooled | Type : Ice flake maker AF 103 XSafe 1 x 1 Na vyžiadanie
