Flange with groove in accordance with DIN 12214.

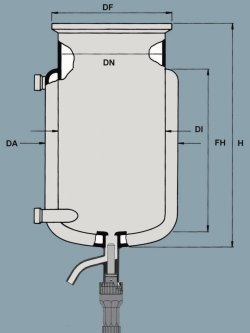

Flask with thermostatic jacket and type "T" 10mm bore PTFE drain valve.
Form
A = cylindrical form
B = short form
| Obj. číslo | 9.142 038 | 9.142 042 | 9.142 056 | 9.142 049 | 9.142 057 | 9.142 046 | 9.142 051 | 9.142 050 | 9.142 059 | 9.142 045 | 9.142 053 | 9.142 055 | 9.142 041 | 9.142 052 | 9.142 058 | 9.142 040 | 9.142 039 | 9.142 043 | 9.142 037 | 9.142 048 | 9.142 047 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Capacity ml | 500 | 3000 | 10000 | 6000 | 10000 | 4000 | 10000 | 10000 | 20000 | 3000 | 20000 | 6000 | 2000 | 15000 | 15000 | 1000 | 1000 | 2000 | 250 | 6000 | 5000 |
| DN mm | 100 | 120 | 200 | 150 | 200 | 150 | 150 | 150 | 200 | 150 | 150 | 200 | 120 | 150 | 200 | 120 | 100 | 150 | 100 | 150 | 150 |
| Fill height mm | 75 | 290 | 340 | 260 | 290 | 250 | 290 | 575 | 400 | 190 | 400 | 210 | 200 | 380 | 380 | 110 | 140 | 130 | 50 | 350 | 300 |
| Flange diam. mm | 138 | 158 | 242 | 184 | 242 | 184 | 184 | 184 | 242 | 184 | 184 | 242 | 158 | 184 | 242 | 158 | 138 | 184 | 138 | 184 | 184 |
| Form | A | A | A | B | B | A | B | A | B | A | B | A | A | B | B | A | A | A | A | A | A |
| Height mm | 165 | 390 | 445 | 360 | 415 | 355 | 450 | 675 | 605 | 295 | 605 | 320 | 300 | 510 | 510 | 210 | 230 | 230 | 140 | 450 | 400 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Widest A.-Ø mm | 140 | 160 | 250 | 250 | 300 | 200 | 300 | 200 | 300 | 200 | 300 | 250 | 160 | 300 | 300 | 160 | 140 | 200 | 140 | 200 | 200 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
9.142 038 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 042 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 056 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
9.142 049 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 057 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 046 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 051 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 050 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 059 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 045 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 053 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 055 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 041 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 052 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 058 | Flat ground flange reaction vessels, jacketed | Form : B | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 040 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 039 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 043 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
9.142 037 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 048 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie | ||
|
|
9.142 047 | Flat ground flange reaction vessels, jacketed | Form : A | 1 x 1 | Na vyžiadanie |
