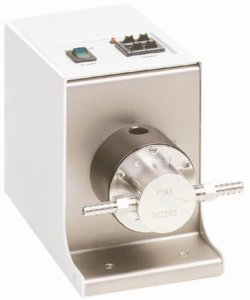

Gear pump drives, Reglo-Z / ZS
Výrobca: Cole-Parmer GmbH (Ismatec)
Drive units can be combined with 14 interchangeable magnetically-coupled pumpheads. Flow rates of 1 to 3290 ml/min. are attainable with pulse-free flow.
Motor speed 50 to 5000 rpm, adjustable in 0.1% steps.
Rotation speed adjustable via 2-digit mechanical push-button potentiometer, with analogue interface.
- Weight 2.1kg (Reglo Z), 2.4kg (Reglo ZS)
- Dimensions : 178 x 100 x 143mm (Reglo Z), 175 x 65 x 80 mm (Reglo ZS)
- Supply requirements: 230V, 50Hz a.c., 50W
Reglo-ZS: Drive and pump head are separated from control unit by a 2m long cable.
Applications:
- cooling and climatic technology
- water purification
- liquid chromatography
- surface coating
