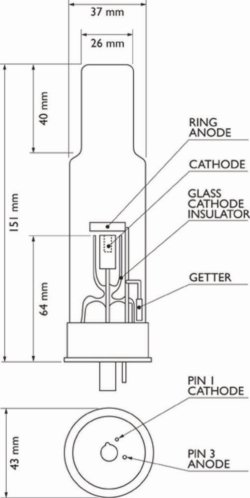

Hollow Cathode, Multi Element Lamps, 37 mm (1.5) diameter

Výrobca: Exacta+Optech Labcenter S.P.A

For direct use in AA systems manufactured by: Varian®, GBC®, Hitachi®, Shimadzu®, Thermo Jarrell Ash® (IL), Unicam®, Seiko®, and most other suppliers.
Hollow cathode lamps are designed and manufactured to achieve all of the following fundamental requirements for a spectral line source. Intense emission of resonance (ground state derived) lines. Narrow line width, for maximum sensitivity and linearity.
Noise free operation. Long running life and long shelf life (5 years). Cathode materials and geometry achieve a combination of spectral purity and a suitable sputtering rate. (A high sputtering rate will give high intensity at the expense of lamp life, sensitivity and linearity).

Obj. číslo 9.309 320 9.309 321 9.309 319
Article Packing Unit 1 1 1
Element 404.4
330.2
217.9
307.6
239.9
202.5
Sales Packing Unit 1.00 1.00 1.00
Window material Na + K Cu + Zn Ca +Mg
alternative wave length 766.5
589.0
324.8
213.9
422.7
285.2
primary wave length B Q Q
  Obj. číslo Názov Kusov v balení Dostupnosť
9.309 320 Hollow Cathode, Multi Element Lamps, 37 mm (1.5) diameter | Type : Na K 1 x 1 Na vyžiadanie
9.309 321 Hollow Cathode, Multi Element Lamps, 37 mm (1.5) diameter | Type : Cu Zn 1 x 1 Na vyžiadanie
9.309 319 Hollow Cathode, Multi Element Lamps, 37 mm (1.5) diameter | Type : Ca Mg 1 x 1 Na vyžiadanie
