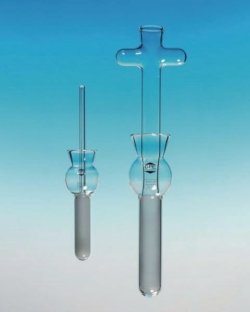

The all-glass Uni-Form range of round body tissue grinders is made from sterilisable heat-resisting glass in capacities 5ml to 55ml. Models are available with rod ends for motor drive, or hollow pestles designed for use with coolants/dry ice. Bodies are available in clear precision glass or ground glass for more effective homogenisation of tougher tissues.
Grinding clearance pestle and mortar 0.152mm to 0.254mm.
| Obj. číslo | 9.164 663 | 9.164 661 | 9.164 669 | 9.164 675 | 9.164 670 | 9.164 679 | 9.164 666 | 9.164 674 | 9.164 667 | 9.164 678 | 9.164 671 | 9.164 672 | 9.164 668 | 9.164 676 | 9.164 660 | 9.164 662 | 9.164 664 | 9.164 673 | 9.164 677 | 9.164 665 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Capacity ml | 30 | 10 | 55 | 5 | 5 | 55 | 10 | 55 | 15 | 30 | 10 | 15 | 30 | 10 | 5 | 15 | 55 | 30 | 15 | 5 |
| Mortar | clear glass | clear glass | clear glass | ground glass | ground glass | ground glass | clear glass | ground glass | clear glass | ground glass | ground glass | ground glass | clear glass | ground glass | clear glass | clear glass | clear glass | ground glass | ground glass | clear glass |
| Mortar L x o.d. mm | 170 x 23 | 130 x 17 | 205 x 31 | 105 x 15 | 105 x 15 | 205 x 31 | 130 x 17 | 205 x 31 | 140 x 19 | 170 x 23 | 130 x 17 | 140 x 19 | 170 x 23 | 130 x 17 | 105 x 15 | 140 x 19 | 205 x 31 | 170 x 23 | 140 x 19 | 105 x 15 |
| Pestle | hollow | hollow | with rod end | with rod end | hollow | with rod end | with rod end | hollow | with rod end | with rod end | hollow | hollow | with rod end | with rod end | hollow | hollow | hollow | hollow | with rod end | with rod end |
| Pestle L x o.d. mm | 295 x 19 | 225 x 13 | 330 x 25 | 205 x 10 | 205 x 10 | 330 x 25 | 225 x 13 | 330 x 25 | 240 x 15 | 295 x 19 | 225 x 13 | 240 x 15 | 295 x 19 | 225 x 13 | 205 x 10 | 240 x 15 | 330 x 25 | 295 x 19 | 240 x 15 | 205 x 10 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
9.164 663 | Homogenisers, Round Body, glass | Capacity ml : 30 | 1 x 1 | Na vyžiadanie | ||
|
9.164 661 | Homogenisers, Round Body, glass | Capacity ml : 10 | 1 x 1 | Na vyžiadanie | ||
|
9.164 669 | Homogenisers, Round Body, glass | Capacity ml : 55 | 1 x 1 | Na vyžiadanie | ||
|
9.164 675 | Homogenisers, Round Body, glass | Capacity ml : 5 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 670 | Homogenisers, Round Body, glass | Capacity ml : 5 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 679 | Homogenisers, Round Body, glass | Capacity ml : 55 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 666 | Homogenisers, Round Body, glass | Capacity ml : 10 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 674 | Homogenisers, Round Body, glass | Capacity ml : 55 | 1 x 1 | Na vyžiadanie | ||
|
9.164 667 | Homogenisers, Round Body, glass | Capacity ml : 15 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 678 | Homogenisers, Round Body, glass | Capacity ml : 30 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 671 | Homogenisers, Round Body, glass | Capacity ml : 10 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 672 | Homogenisers, Round Body, glass | Capacity ml : 15 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 668 | Homogenisers, Round Body, glass | Capacity ml : 30 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 676 | Homogenisers, Round Body, glass | Capacity ml : 10 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 660 | Homogenisers, Round Body, glass | Capacity ml : 5 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 662 | Homogenisers, Round Body, glass | Capacity ml : 15 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 664 | Homogenisers, Round Body, glass | Capacity ml : 55 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 673 | Homogenisers, Round Body, glass | Capacity ml : 30 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 677 | Homogenisers, Round Body, glass | Capacity ml : 15 | 1 x 1 | Na vyžiadanie | ||
|
|
9.164 665 | Homogenisers, Round Body, glass | Capacity ml : 5 | 1 x 1 | Na vyžiadanie |
