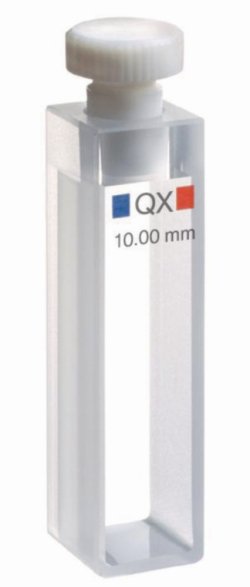

Quartz glass Extended Range, Wavelength range: 200 - 3500 nm. Inside width 9.5 mm. Base thickness 1.5 mm.
Type A: with PTFE lid
Type B: with small glass lid
Type D: with PTFE stopper / from 40 mm with 2 PTFE stoppers
| Obj. číslo | 6.053 055 | 6.052 763 | 6.901 645 | 6.258 627 | 6.267 219 | 6.302 993 | 6.086 375 | 6.078 779 | 6.072 791 | 6.800 848 |
|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 1 | 1 |
| Capacity µl | 1750 | 3500 | 700 | 3500 | 350 | 350 | 3500 | 17500 | 1750 | 350 |
| External dimensions (W x D x H) mm | 45 x 12.5 x 7.5 | 46 x 12.5 x 12.5 | 45 x 12.5 x 4.5 | 46 x 12.5 x 12.5 | 45 x 12.5 x 3.5 | 45 x 12.5 x 3.5 | 45 x 12.5 x 12.5 | 45 x 12.5 x 52.5 | 46 x 12.5 x 7.5 | 52 x 12.5 x 3.5 |
| Path length mm | 5 | 10 | 2 | 10 (spectrally measured) | 1 (spectrally measured) | 1 | 10 | 50 | 5 | 1 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
6.053 055 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : A | 1 x 1 | Na vyžiadanie | ||
|
6.052 763 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : D | 1 x 1 | Na vyžiadanie | ||
|
6.901 645 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : B | 1 x 1 | Na vyžiadanie | ||
|
|
6.258 627 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : D | 2 x 1 | Na vyžiadanie | ||
|
|
6.267 219 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : B | 2 x 1 | Na vyžiadanie | ||
|
|
6.302 993 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : B | 1 x 1 | Na vyžiadanie | ||
|
|
6.086 375 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : A | 1 x 1 | Skladom do 9 dní | ||
|
|
6.078 779 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : A | 1 x 1 | Na vyžiadanie | ||
|
|
6.072 791 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : D | 1 x 1 | Na vyžiadanie | ||
|
|
6.800 848 | Macro cells for absorption measurement, NIR-range, quartz glass Extended Range | Type : D | 1 x 1 | Na vyžiadanie |
