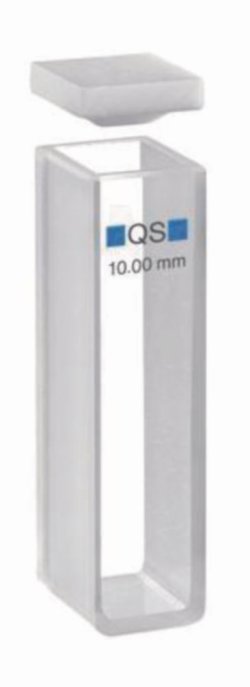

Quartz glass High Performance 200 - 2500 nm. Inside width 9.5 mm. Base thickness 1.5 mm.
Type A: with PTFE lid
Type B: with small glass lid
Type C: with regular glass lid
Type D: with PTFE stopper / from 40 mm with 2 PTFE stoppers
| Obj. číslo | 6.302 618 | 9.144 601 | 9.144 202 | 9.144 610 | 6.052 419 | 9.144 201 | 9.144 640 | 9.144 605 | 6.800 651 | 6.088 125 | 6.260 600 | 6.250 026 | 9.144 250 | 9.144 220 | 6.263 990 | 9.144 210 | 6.052 418 | 6.288 578 | 6.223 466 | 9.144 620 | 9.144 205 | 9.144 650 | 6.263 234 | 9.144 240 | 6.052 421 | 6.204 919 | 6.260 775 | 7.200 274 | 6.052 420 | 9.144 602 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 1 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 2 | 1 | 1 |
| Capacity µl | 3500 | 350 | 700 | 3500 | 700 | 350 | 14000 | 1750 | 7000 | 35000 | 350 | 14000 | 17500 | 7000 | 350 | 3500 | 3500 | 1750 | 350 | 7000 | 1750 | 17500 | 1750 | 14000 | 17500 | 700 | 350 | 17500 | 1750 | 700 |
| External dimensions (W x D x H) mm | 12.5 x 12.5 x 45 | 12.5 x 3.5 x 52 | 12.5 x 4.5 x 45 | 12.5 x 12.5 x 46 | 12.5 x 4.5 x 52 | 12.5 x 3.5 x 45 | 12.5 x 42.5 x 46 | 12.5 x 7.5 x 46 | 12.5 x 22.5 x 45 | 12.5 x 102.5 x 45 | 12.5 x 3.5 x 45 | 12.5 x 52.5 x 45 | 12.5 x 52.5 x 45 | 12.5 x 22.5 x 45 | 12.5 x 3.5 x 52 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 46 | 12.5 x 7.5 x 46 | 12.5 x 3.5 x 52 | 12.5 x 22.5 x 45 | 12.5 x 7.5 x 45 | 12,5 x 52,5 x 46 | 12.5 x 7.5 x 45 | 12.5 x 42.5 x 45 | 12.5 x 52.5 x 46 | 12.5 x 4.5 x 45 | 12.5 x 3.5 x 52 | 12.5 x 52.5 x 45 | 12.5 x 7.5 x 46 | 12.5 x 4.5 x 52 |
| Path length mm | 10 (spectrally measured) | 1 | 2 | 10 | 2 (spectrally measured) | 1 | 40 | 5 | 20 (spectrally measured) | 100 | 1 (spectrally measured) | 40 (spectrally measured) | 50 | 20 | 1 (spectrally measured) | 10 | 10 (spectrally measured) | 5 (polarimetrically measured) | 1 (spectrally measured) (polarimetrically measured) | 20 | 5 | 50 | 5 (spectrally measured ) | 40 | 50 (spectrally measured) | 2 (spectrally measured) | 1 (polarimetrically measured) | 50 (spectrally measured) | 5 (spectrally measured) | 2 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 2.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 2.00 | 1.00 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
|
6.302 618 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 2 x 1 | Skladom do 11 dní | ||
|
9.144 601 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Skladom do 9 dní | ||
|
9.144 202 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : B | 1 x 1 | Na vyžiadanie | ||
|
9.144 610 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | skladom | ||
|
6.052 419 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 2 | Na vyžiadanie | ||
|
9.144 201 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : B | 1 x 1 | Skladom do 7 dní | ||
|
|
9.144 640 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Na vyžiadanie | ||
|
|
9.144 605 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Na vyžiadanie | ||
|
|
6.800 651 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 2 x 1 | Na vyžiadanie | ||
|
6.088 125 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : C | 1 x 1 | Na vyžiadanie | ||
|
|
6.260 600 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : B | 2 x 1 | Na vyžiadanie | ||
|
|
6.250 026 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 2 x 1 | Na vyžiadanie | ||
|
|
9.144 250 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 1 x 1 | skladom | ||
|
|
9.144 220 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 1 x 1 | Skladom do 10 dní | ||
|
|
6.263 990 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 2 x 1 | Na vyžiadanie | ||
|
9.144 210 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 1 x 1 | skladom | ||
|
|
6.052 418 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 2 x 1 | Na vyžiadanie | ||
|
|
6.288 578 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Na vyžiadanie | ||
|
|
6.223 466 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 2 x 1 | Na vyžiadanie | ||
|
|
9.144 620 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Na vyžiadanie | ||
|
|
9.144 205 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 1 x 1 | Skladom do 8 dní | ||
|
|
9.144 650 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Na vyžiadanie | ||
|
|
6.263 234 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 2 x 1 | Na vyžiadanie | ||
|
|
9.144 240 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : A | 1 x 1 | Na vyžiadanie | ||
|
|
6.052 421 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 2 x 1 | Na vyžiadanie | ||
|
|
6.204 919 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : B | 2 x 1 | Na vyžiadanie | ||
|
|
6.260 775 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 2 x 1 | Na vyžiadanie | ||
|
|
7.200 274 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : C | 2 x 1 | Na vyžiadanie | ||
|
|
6.052 420 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 2 | Na vyžiadanie | ||
|
|
9.144 602 | Macro cells for absorption measurement, UV-range, quartz glass High Performance | Type : D | 1 x 1 | Na vyžiadanie |
