Micro-distillation system

Výrobca: Gebr. Rettberg GmbH

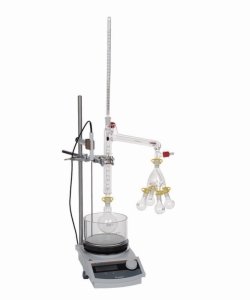

Complete Micro-distillation unit consisting of a Vigreux column with vacuum jacket (effective length 150 mm) and attached Liebig condenser (jacket length approx. 160 mm), stopper with vacuum attachment, 2 x NS 14.5 cone and 1 x NS 14.5 socket joint connections, permanently fixed, plastic (PP) tubing connectors, 100 ml evaporating flask, condensate distributor with 4 x 10 ml receiving flasks, 0 to +250 °C thermometer, heating bath trough with thick Duran walls and flat-ground and polished base (capacity approx. 600 ml), stand and mountings, magnetic hotplate / stirrer, Pt1000 sensor (to control the bath temperature).

Individual components:

  • Vigreux column with vacuum jacket, effective length 150 mm, attached Liebig condenser (jacket length approx. 160 mm), stopper with vacuum attachment, 2 x NS 14.5 cone and 1 x NS 14.5 socket joint connections and permanently fixed plastic (PP) tubing connectors
  • Evaporating flask, 100 ml, NS 14.5 socket
  • Condensate distributor,with NS 14.5 socket, 4 x NS 14.5 cones
  • Receiving flask, 10 ml, NS 14.5 socket
  • Set of joint clips
  • Heating bath trough, glass, volume approx. 600 ml, with polished base to improve heat conduction, thick walls, compatible with magnetic hotplate / stirrer.
  • Ground joint (NS 14.5) thermometer, range 0 to +250 °C, 75 mm immersion
  • Stand and mountings
  • Magnetic hotplate / stirrer and Pt1000 sensor (for heating bath trough)

Obj. číslo 9.305 373 9.305 378 9.305 370 9.305 379 9.305 376 9.305 371
Article Packing Unit 1 1 1 1 1 1
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00 1.00
  Obj. číslo Názov Kusov v balení Dostupnosť
9.305 373 Micro-distillation system | Description : Multi-flask distributor 1 x 1 Na vyžiadanie
9.305 378 Micro-distillation system | Description : Stand and mountings set 1 x 1 Na vyžiadanie
9.305 370 Micro-distillation system | Description : Micro-distillation system, complete 1 x 1 Na vyžiadanie
9.305 379 Micro-distillation system | Description : Magnetic hotplate / stirrer 1 x 1 Na vyžiadanie
9.305 376 Micro-distillation system | Description : Heating bath trough 1 x 1 Na vyžiadanie
9.305 371 Micro-distillation system | Description : Vigreux column with vacuum jacket 1 x 1 Na vyžiadanie
