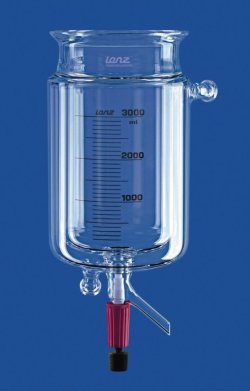

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve

Výrobca: Lenz-Laborglas GmbH & Co. KG

  • With graduation
  • Laboratory flange LF
  • With groove
  • Two connectors with threads GL 14 or GL 18
  • Made of DURAN® tubing

Other sizes on request.

Obj. číslo 9.142 767 6.233 770 6.233 793 6.243 114 9.142 787 9.142 784 9.142 781 6.224 194 6.243 115 6.240 516 6.243 116 9.142 768 9.142 782 7.635 340 6.230 277 9.142 766
Article Packing Unit 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bore mm 10 10 10 10 10 10 10 10 10 20 10 10 10 10 10 10
Connection GL 14 GL 14 GL 18 GL 18 GL 18 GL 18 GL 18 GL 18 GL 18 GL 18 GL 18 GL 14 GL 18 GL 18 GL 18 GL 14
Flange (LF) 60 60 150 100 100 100 100 150 150 150 150 60 100 150 100 60
Height mm 300 360 375 440 495 490 295 540 430 640 595 385 360 485 275 245
Int. height mm 170 220 225 285 340 350 155 390 280 480 445 255 220 335 140 115
Nominal capacity ml 250 1000 2000 3000 4000 2000 500 5000 3000 10000 6000 500 1000 4000 250 100
Outer/ inner diam. mm 90/60 90/60 190/150 190/150 190/150 130/99 130/99 190/150 190/150 315/240 190/150 90/60 130/99 190/150 130/99 90/60
Sales Packing Unit 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
  Obj. číslo Názov Kusov v balení Dostupnosť
9.142 767 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 250 1 x 1 Na vyžiadanie
6.233 770 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 1000 1 x 1 Na vyžiadanie
6.233 793 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 2000 1 x 1 Na vyžiadanie
6.243 114 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 3000 1 x 1 Na vyžiadanie
9.142 787 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 4000 1 x 1 Na vyžiadanie
9.142 784 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 2000 1 x 1 Na vyžiadanie
9.142 781 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 500 1 x 1 Na vyžiadanie
6.224 194 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 5000 1 x 1 Na vyžiadanie
6.243 115 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 3000 1 x 1 Na vyžiadanie
6.240 516 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 10000 1 x 1 Na vyžiadanie
6.243 116 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 6000 1 x 1 Na vyžiadanie
9.142 768 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 500 1 x 1 Na vyžiadanie
9.142 782 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 1000 1 x 1 Na vyžiadanie
7.635 340 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 4000 1 x 1 Na vyžiadanie
6.230 277 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 250 1 x 1 Na vyžiadanie
9.142 766 Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve | Nominal capacity ml : 100 1 x 1 Na vyžiadanie
