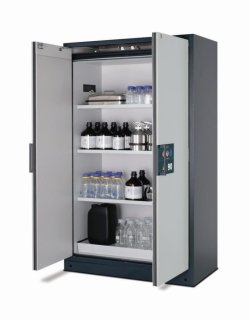

Safety storage cabinets Q-CLASSIC-90

Výrobca: asecos GmbH

  • Safe and approved storage of hazardous materials in workrooms
  • Type proofed according to DIN EN 14470-1, fire resistance 90 minutes
  • GS approved
  • Body made of sheet steel plastic laminated, structure finish
  • Colour: Body anthracite grey (RAL 7016) doors light grey (RAL 7035), door colour pure white (RAL 9010) available on request
  • Convenient handling with comfort, doors stop in any position, self-closing in the event of a fire
  • Doors lockable with cylinder lock (suitable for master-key system) and locking state indicator (red/green)
  • Integrated transport base, optional base cover
  • Integrated adjusting aids to compensate for uneven floor
  • Exhaust air connection (DN 75) on top of the cabinet

Height adjustable shelves (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity of the bottom collecting sump: 33 litre (cabinet width 1193 mm), 22 litre (cabinet width 599 mm)

Scope of delivery: Safety storage cabinet model Q90.195.120 or Q90.195.060 incl. interior equipment with 3 shelves, bottom collecting sump and perforated insert

Option:
  • Recirculating air filter system with exhaust air monitoring (Cat. No. 9.840 650)
  • Ventilation system with exhaust air monitoring (Cat. No. 6.238 986)
  • Ventilation system without exhaust air monitoring (Cat. No. 9.840 616)

Many further cabinet versions available.

Obj. číslo 6.267 274 6.265 138 9.840 699001 9.840 700001
Article Packing Unit 1 1
Sales Packing Unit 1.00 1.00
  Obj. číslo Názov Kusov v balení Dostupnosť
6.267 274 Safety storage cabinets Q-CLASSIC-90 | Description : Safety storage cabinet Q90.195.060 1 x 1 Na vyžiadanie
6.265 138 Safety storage cabinets Q-CLASSIC-90 | Description : Safety storage cabinet Q90.195.120 1 x 1 Na vyžiadanie
9.840 699001 Plinth panel RAL 7016 for 1-door model Q90.195.060 WDAC steel plate powder-coated Na vyžiadanie
9.840 700001 Plinth panel RAL 7016 for 2-door model Q90.195.120 WDAC steel plate powder-coated Na vyžiadanie
