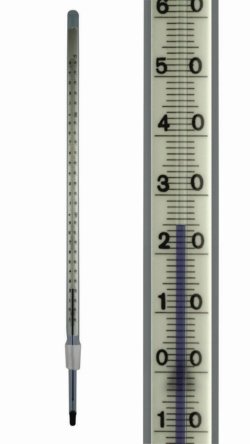

With NS 14.5/23 cone. Enclosed-scale type, Translucent glass scale. Upper section approx. 11 mm diameter, lower section 7.5 mm diameter. Richter-top finish seal without button. Suitable for official calibration.
| Obj. číslo | 6.320 651 | 7.649 711 | 6.314 526 | 4.664 052 | 6.317 155 | 6.490 193 | 4.661 993 | 7.649 712 | 4.664 053 | 6.259 408 | 9.236 021 | 9.236 023 | 9.236 028 | 9.236 024 | 9.236 027 | 9.236 026 | 6.287 905 | 6.254 162 | 9.236 025 | 7.981 589 | 9.236 022 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Charge colour | Green | Blue | Blue | Red | Red | Blue | Red | Blue | Blue | Red | Red | Blue | Green | Green | Blue | Red | Red | Red | Red | Red | Red |
| Corpus mm | 350 | 300 | 350 | 250 | 350 | 350 | 350 | 350 | 300 | 250 | 250 | 300 | 350 | 350 | 300 | 350 | 350 | 250 | 250 | 350 | 350 |
| Graduations °C | 1.0 | 1.0 | 1.0 | 1.0 | 0.5 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 0.5 | 0.5 | 1.0 | 1.0 | 0.5 | 0.5 |
| Immersion depth mm | 127 | 77 | 127 | 52 | 52 | 67 | 97 | 212 | 77 | 52 | 52 | 52 | 77 | 52 | 77 | 77 | 77 | 52 | 77 | 77 | 52 |
| Measuring range °C | -10 ... 360 | -10 ... 250 | -10 ... 250 | -10 ... 150 | -10 ... 150 | -10 ... 250 | -10 ... 150 | -10 ... 250 | -10 ... 250 | -10 ... 150 | -10 ... 150 | -10 ... 250 | -10 ... 360 | -10 ... 360 | -10 ... 250 | -10 ... 150 | -10 ... 150 | -10 ... 150 | -10 ... 150 | -10 ... 150 | -10 ... 150 |
| Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Obj. číslo | Názov | Kusov v balení | Dostupnosť | |||
|---|---|---|---|---|---|---|
| 6.320 651 | Thermometers, standard ground joint | Measuring range °C : -10 ... 360 | 1 x 1 | Na vyžiadanie | |||
| 7.649 711 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | Na vyžiadanie | |||
| 6.314 526 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | Na vyžiadanie | |||
| 4.664 052 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | |||
| 6.317 155 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | |||
| 6.490 193 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | Na vyžiadanie | |||
| 4.661 993 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | |||
| 7.649 712 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | Na vyžiadanie | |||
| 4.664 053 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | Na vyžiadanie | |||
|
6.259 408 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | ||
|
|
9.236 021 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Skladom do 9 dní | ||
|
9.236 023 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | skladom | ||
|
9.236 028 | Thermometers, standard ground joint | Measuring range °C : -10 ... 360 | 1 x 1 | Na vyžiadanie | ||
|
|
9.236 024 | Thermometers, standard ground joint | Measuring range °C : -10 ... 360 | 1 x 1 | Na vyžiadanie | ||
|
|
9.236 027 | Thermometers, standard ground joint | Measuring range °C : -10 ... 250 | 1 x 1 | Skladom do 16 dní | ||
|
|
9.236 026 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | ||
|
|
6.287 905 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | ||
|
|
6.254 162 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | ||
|
|
9.236 025 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Skladom do 5 dní | ||
|
|
7.981 589 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie | ||
|
|
9.236 022 | Thermometers, standard ground joint | Measuring range °C : -10 ... 150 | 1 x 1 | Na vyžiadanie |
