Quartz glass High Performance 200 - 2500 nm.

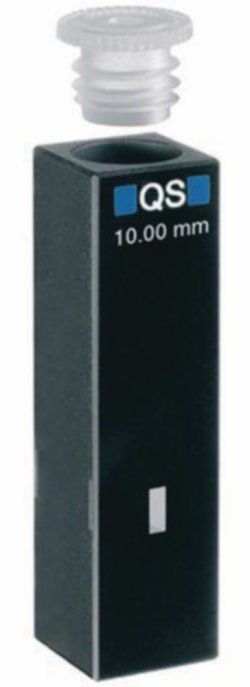

Type A: with PE stopper
Type B: open pipette tips
Obj. číslo | 9.190 968 | 9.144 157 | 9.144 156 | 9.190 965 | 9.190 966 | 9.190 967 | 9.190 969 | 9.190 964 |
---|---|---|---|---|---|---|---|---|
Aperture mm | 5x2 | Ø 0.8 | Ø 0.8 | 5x2 | 8x2 | 2.5x2 | 8x2 | 2.5x2 |
Article Packing Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Capacity µl | 100 | 5 | 5 | 100 | 160 | 50 | 160 | 50 |
Centre height mm | 15 | 8.5 | 15 | 8.5 | 8.5 | 15 | 15 | 8.5 |
External dimensions (W x D x H) mm | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 40 | 12.5 x 12.5 x 40 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 | 12.5 x 12.5 x 45 |
Path length mm | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Sales Packing Unit | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
