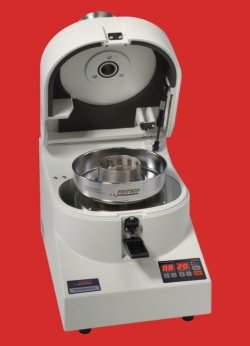

Ideal for fast, effective comminution of soft to medium-hard, brittle, fibrous materials, as well as difficult-to-mill and temperature-sensitive samples. Cryogenic grinding, dispersion and homogenisation are also one of the areas of operation. The variable speed rotor mill is an ultra-centrifugal mill with variable speed settings between 6000rpm and 20000rpm and automatic speed regulation for constant milling in the areas of analytic, biology, chemistry, agriculture and forestry, foodstuffs, plastics and textiles, pharmaceuticals, environment, RoHS. For optimal material feeding the Vibratory Feeder LABORETTE 24 (optional) is recommended.
Obj. číslo | 9.738 277 | 9.738 276 |
---|---|---|
Article Packing Unit | 1 | 1 |
Depth mm | 480 | 480 |
Dimensions (W x D x H) mm | 301 x 480 x 470 | 310 x 480 x 470 |
Feed size mm | 10 | 10 |
Height mm | 470 | 470 |
Max. fineness mm | 0.08 | 0.08 |
Max. speed rpm | 20000 | 20000 |
Max. throughput l/h | 5 | 5 |
Min. speed rpm | 6000 | 6000 |
No. of grinding stations | 1 | 1 |
Plug type | EU | EU |
Rated capacity kW | 1.1 | 1.1 |
Sales Packing Unit | 1.00 | 1.00 |
Type of auxiliary energy | 200 ... 240 V, 50-60 Hz | 100 ... 120 V, 50-60 Hz |
Weight kg | 23 | 23 |
Width mm | 301 | 310 |
